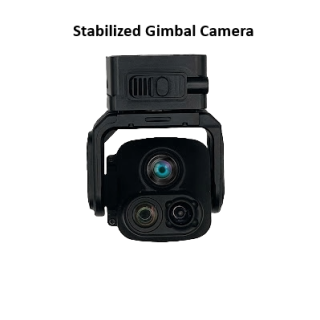

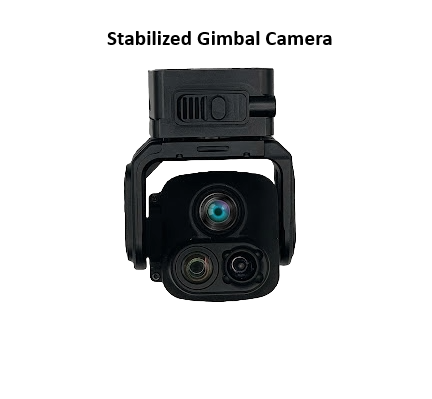

Stabilized Gimbal Camera

● Two-axis stabilized gimbal system for multi-rotor UAVs applications
● Visible Light (EO) and LWIR cameras
● Light weight design suitable for drones with takeoff weight under 2kg and most UAVs applications
● High-resolution EO and LWIR image with excellent zoom range.
Zoom with Stabilization only
@1080P/30fps zoom x27 +x2 digital (total x54)
@720P/30fps zoom x38 + x2 digital (total x76)
@LWIR VGA digital zoom: x4
Zoom with Stabilization and E.I.S.
@1080P zoom x22+x2 digital (total x44)
@720P zoom x31 + x2 digital (total x62)
@LWIR VGA digital zoom: x4
● USB or Ethernet video output interface for Datalink connection without additional converter.
● Support Video MJPEG, H.264 video formats
● UART interface with MAVLink protocol for gimbal control
● IMU sensors for precise attitude detection and control
● Maximum control range: Tilt 135°, Pan 330°
● Weight: <200g (gimbal with quick release)
● Dimension: 63.5mmX55.3mmX76.8mm (gimbal only), 63.5mmX62.5mm X86.3mm (gimbal with quick release)
● Operation Temperature: -20 ~+55C
● NDAA compliance
