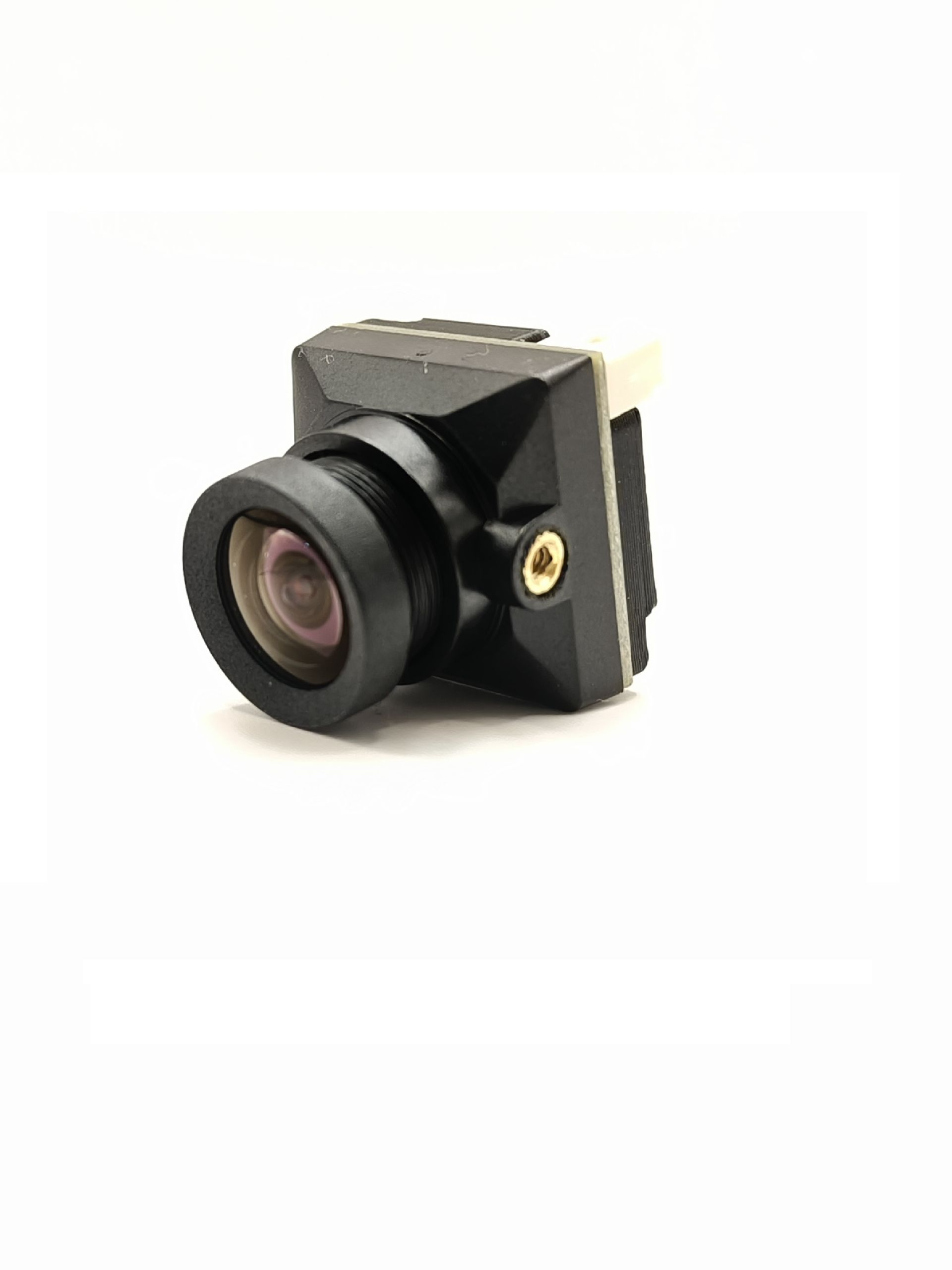

FPV Camera

First-Person View Camera
NDAA compliance


● For FPV drone applications
● High resolution and low latency
● PAL/NTSC switchable, 4:3/16:9 switchable
● Auto white balance, auto noise reduction
● CMOS 1/3” sensor, active pixels 1288H x 968V
● CVBS 720H video output
● Dynamic range: 87db Max. SNR: 44.2db
● Sensitivity: 6500mV/lux-sec.
● Input voltage range: 4.2V ~ 16V
● Dimension: 19.25 x 19.25 x 21.57mm
● Weight: 5.2g (typ.)
● Available for NDAA
