Drone Ground Control Station

Ground Control Station, Drone Remote Controller
NDAA compliance

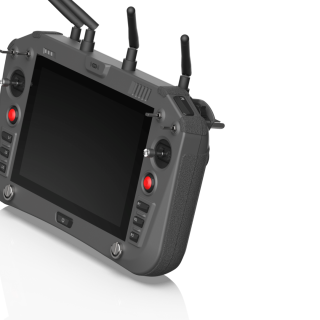

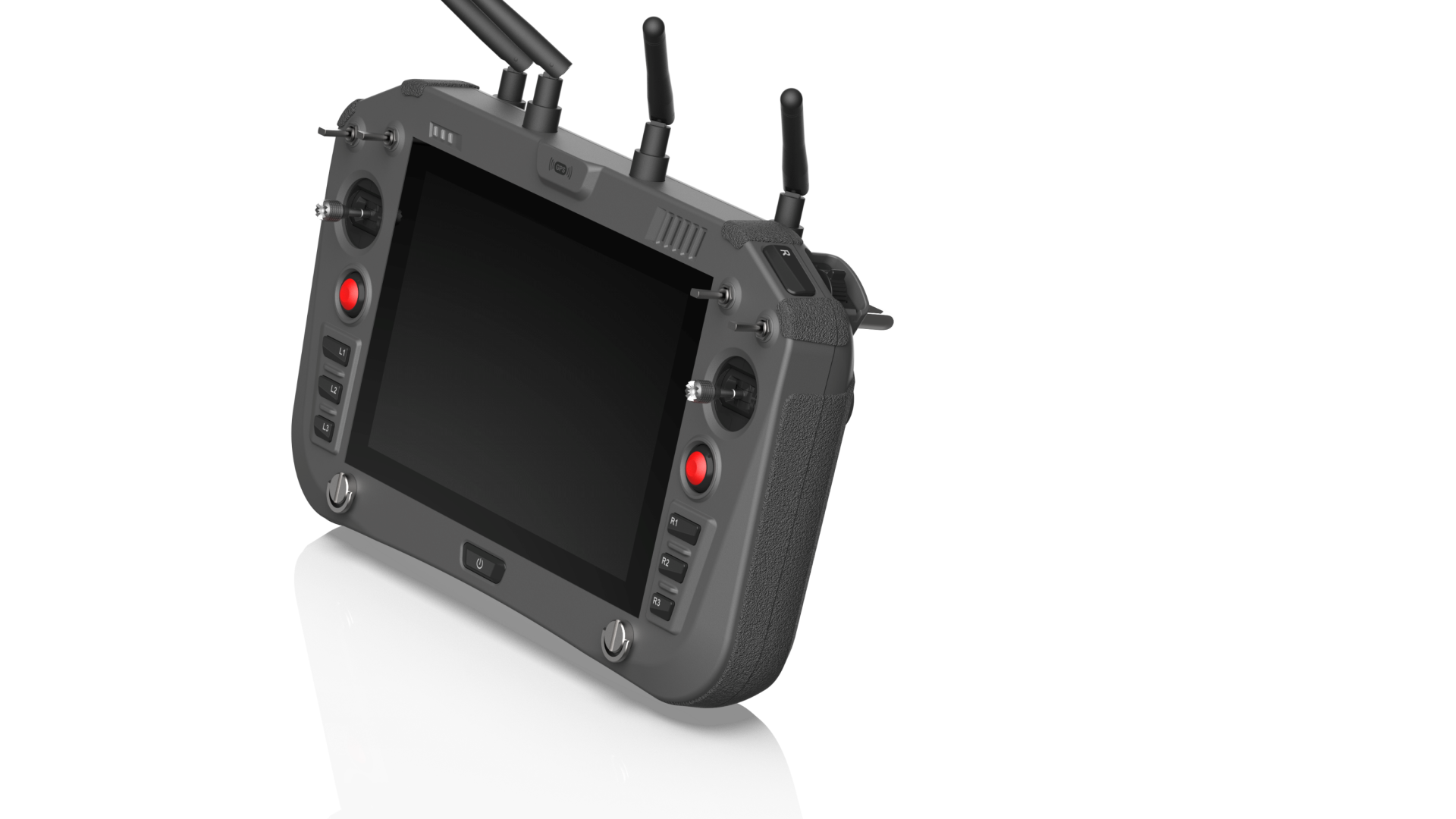

Ground Control Station
● Professional Co-Pilot Ground Control Station (GCS)
⠀ for seamless and reliable flight operations
● Linux platform
● 8-inch 1200-nits LCD display (option for 1280X800 or 1920x1200)
● 10-point capacitive touch screen
● Support for 16 communication channels
● Up to 5-10km transmission distance
● RF frequency: 2.4GHz / 5.8GHz 2 or 4 foldable antennas
● With GPS, IEEE 802.11 2X2 Wi-Fi 6 Wireless LAN
● I/O interface: USB3.0 x1 / Micro-HDMI x1 / Micro-USB x1
⠀ Micro-SD card / DC-power jack x1
● Joystick controller x2
● Button/Switch: Button x12 / Toggle switch x4
⠀ Thumb wheel switch x2
● Speaker x1 (1Watt)
● Replaceable 4900mAh Lithium-ion battery
● Operating time: > 3.5 hours (@800nits)
● Weight: less than 2kg
● Encryption: AES-256
● IP54 protection
● Available for NDAA
