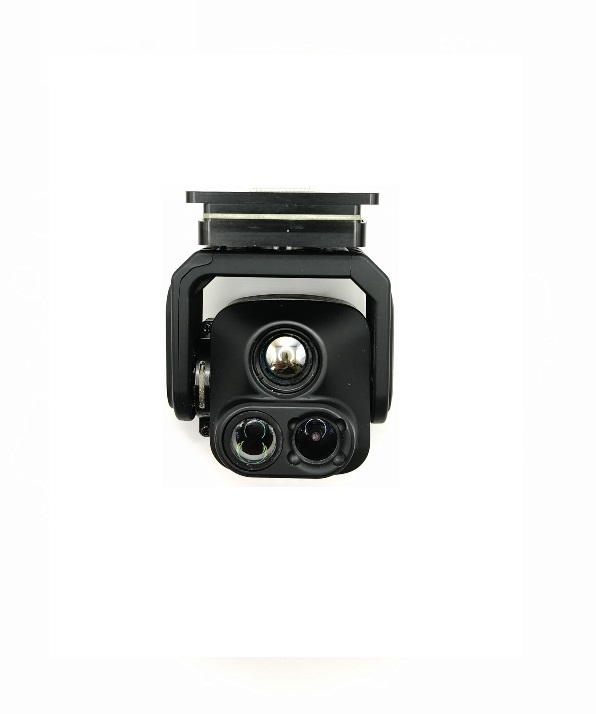

AeroVision Smart Gimbal System x62

EO-IR Two-Axis Gimbal System
NDAA compliance


● Two-axis gimbal system with Visible Light (EO) and LWIR
⠀ cameras for multi-rotor UAVs drone applications
● Light weight design, suitable for drones with takeoff weight ⠀
⠀ under 2kg
● EIS (Electronic image stabilization) stability control
● High-resolution EO (1920x1080/30FPS) image and LWIR image
⠀ (640x480/30FPS) outputs
● EO and LWIR image with USB or Ethernet output interface
● MAVLink protocol for control and communicating via UART interface
● Input voltage range: 15V ~ 28V
● Visible camera configuration
⠀ Visible: 400 ~ 700nm
⠀ Resolution: 1280x720 Frame Rate: 30FPS
⠀ Zoom: x31 + x2 digital, (total x62) continuous zoom (with EIS)
⠀ Resolution: 1920x1080 Frame Rate: 30FPS
⠀ Zoom: x22 + x2 digital, (total x44) continuous zoom (with EIS)
● LWIR camera configuration
⠀ LWIR uncooled (8 ~ 14um)
⠀ Resolution: 640 x 480 Frame Rate: 30FPS
⠀ Zoom: x1, x2, x4, x8 digital zoom
● EO & LWIR image output: USB or Ethernet (configurable)
● Maximum control range: Tilt: 180o (+45o ~ -135o),
⠀ Pan: 330o (+165o ~ -165o)
● With IMU sensor
● With quick release mechanism
● Dimension: 64 x 55.3 x 77mm (gimbal only)
● Weight: < 170g (gimbal only)
● IP54 protection
● Available for NDAA
